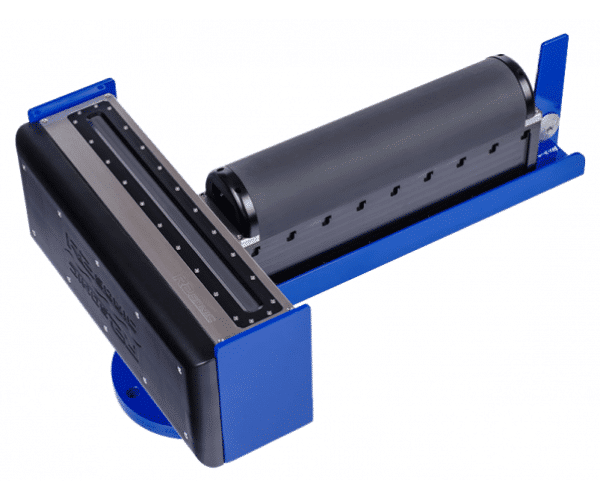

Sonic® 2026-V
Multibeam Echosounder
Ideal for advanced hydrography, research & seafloor characterization, on surface vessels, ROV or AUV
High Level Description
- Low operating frequencies: 90/100kHz
- High resolution: 0.45⁰ x 0.45⁰ at 450kHz and Ultra High Resolution 700kHz option
- +800m range
https://vimeo.com/458288952?fl=pl&fe=sh
| SONAR PERFORMANCE | |
| Selectable Frequencies | 170 – 450kHz. Optional 90/100kHz and 700kHz |
| Minimum frequency increase | 1Hz |
| Beamwidth, across track and along track | 0.3° x 0.3° at 700kHz (optional) 0.45° x 0.45° at 450kHz 1° x 1° at 200kHz 2°x 2° at 90/100kHz (optional) |
| Number of soundings | Up to 1024 soundings per ping |
| Max speed (vessel) | 11.1 knots for full coverage (*) |
| Near-field focusing* | Yes |
| Roll stabilized beams | Yes |
| Pitch stabilized beams | Yes |
| ROBO™ Automated Operation | Yes Auto Power, pulse width, rangeTrac™, GateTrac™, SlopeTrac™ |
| Saturation monitor | Yes |
| Selectable Swath Sector (also referred as Max Coverage) | 10° to 160° User selectable in real-time |
| Sounding Patterns | Equiangular Equidistant single / double / quad modes Ultra High Density (UHD) |
| Sounding Depth | up to 800m+ |
| Pulse Length | 15µs – 2ms 140µs – 2ms in LF mode |
| Pulse Type | Shaped CW |
| Ping rate | up to 60Hz |
| Immersion Depth | 100m Optional 4000m FLS projectors are rated 4000m |
| Bottom Detect Resolution | 3mm |
| ELECTRICAL INTERFACE | |
| Mains | 90-260VAC, 45-65Hz, or 10-55V DC |
| Power consumption | 100W avg |
| Uplink/downlink | 10/100/1000Base-T Ethernet |
| Sync in, Sync out | TTL |
| Deck cable length | 15m, optional 25m and 50m |
| MECHANICAL | |
| Receiver Dim (LWD) | 480 x 109 x 190 mm |
| Receiver Mass | 12.9kg |
| Projector Dim (LWD) | 480 x 109 x 196 mm |
| Projector Mass | 13.4kg |
| VOX-IM Interface Module (LWH) & Mass | 212 x 160 x 70.5 mm; 2.9kg |
