QPS – Fledermaus

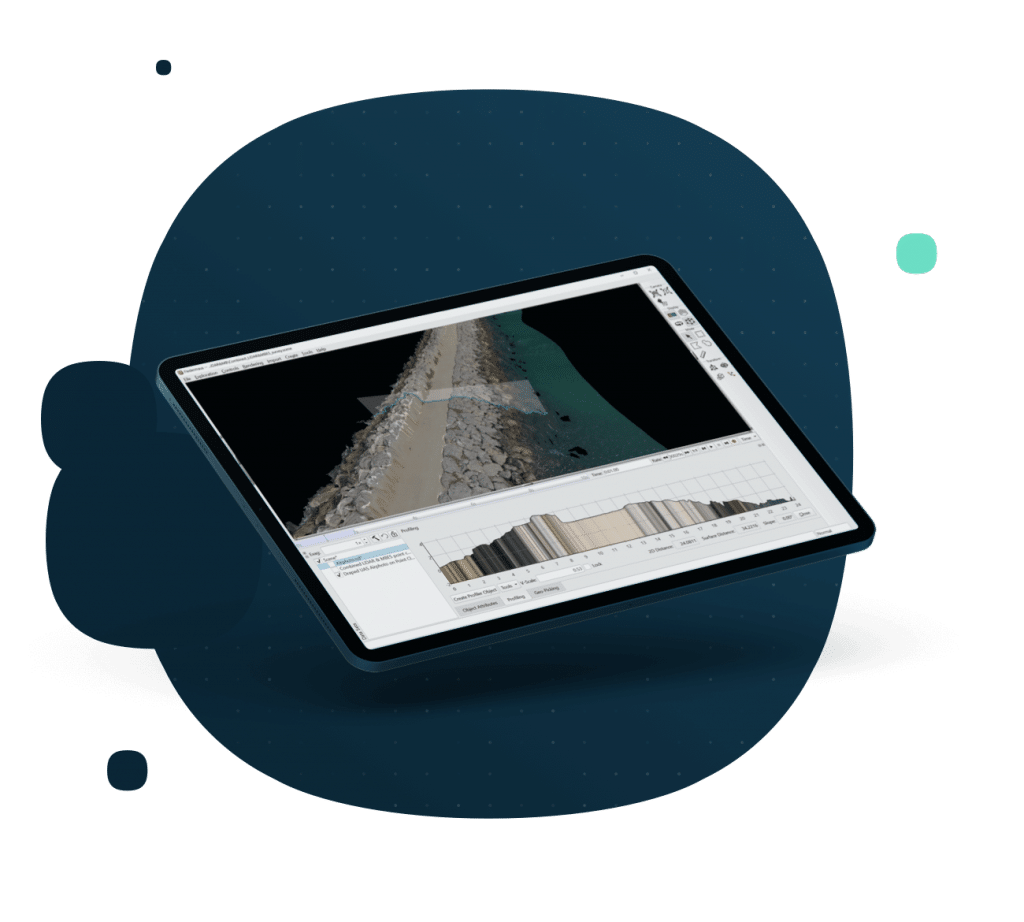

Fledermaus is an interactive 4D geo-spatial analysis software. With movie-making tools and integrated video playback, it is the gold standard for presentation and communication.
Measured & Proven
Stereo-capable 4D visualization
Functionality integrated to time series data components.
3D fly-throughs
Create and record fly-throughs in 3D space.
Video integration
Synchronized data-integrated video playback in the scene.
Navigation support
Support for navigation peripherals (e.g. bat, mouse, and space navigator).
Time/space notes
Set for movie-making with easy text/image insertion.
Grid functionality
Create, interpolate, mask, crop, and resample grids for the best possible interpretation of the seafloor.
Image draping
Drape imagery (e.g. side scan or backscatter mosaics, charts, class, textures, etc.) atop 3D surfaces.
Object and surface analysis
Show object and surface change over time, and perform slope and surface difference calculations.
| CORE FEATURES | |
| Measured & Proven | Stereo-capable 4D visualization Functionality integrated to time series data components. |
| 3D fly-throughs | Create and record fly-throughs in 3D space. |
| Video integration | Synchronized data-integrated video playback in the scene. |
| Navigation support | Support for navigation peripherals (e.g. bat, mouse, and space navigator). |
| Time/space notes | Set for movie-making with easy text/image insertion. |
| Grid functionality | Create, interpolate, mask, crop, and resample grids for the best possible interpretation of the seafloor. |
| VISUALIZATION & ANALYSIS | |
| Image draping | Drape imagery (e.g. side scan or backscatter mosaics, charts, class, textures, etc.) atop 3D surfaces. |
| Object and surface analysis | Show object and surface change over time, and perform slope and surface difference calculations. |
| Object tracking | Real-time tracking of objects (vessels, animals, etc.) via serial cable, UDP packet, or logged string. |
| DATA & EXPORT | |
| Point, line, and polygon creation | Generate and export points, lines, polygons, contours, and grids in industry-standard formats. |
| Image export | Produce high-resolution graphics for reports, posters, and publications. |
| FM Geocoder Toolbox | Backscatter processing and multi-frequency mosaicking, intra-vessel normalization, and seafloor characterization. |
| FM Midwater | Processing and analysis of multibeam and singlebeam water-column data and seismic data. |
| ESRI integration | Seamless workflow with direct 2-way link to ArcGIS software. |
| ENGINEERING & CHARTING | |
| Pipeline tools | Pipeline analysis (eventing), route planning, pipeline length calculations, and data exports. |
| Profiling | Generate and export long- and cross- profiles for use in engineering analysis. |
| Charting support | Sounding, feature, and contact selection and export to database. |
| SUPPORTED PLATFORMS | |
| Windows | Windows 7, 8.1, 10* (32- or 64-bit) *Excludes “N” and “KN” versions |
| Mac | Mac OS X 10.10.x, 10.11x, 10.12x |
| Linux | RedHat Enterprise Linux 6 (64-bit) Ubuntu 14.04 (64-bit) Ubuntu 16.04 (64-bit) |
| SYSTEM REQUIREMENTS | |
| Processor | Intel i3 2.4+Ghz/AMD equivalent (minimum), Intel i5 or i7 2.6Ghz+ / AMD equivalent (recommended). |
| Video card | Minimum: NVIDIA GeForce 8000 series, AMD HD2xxxx (RV610+), Intel HD2000, Support for Open GL 3.0+ Recommended: NVIDIA GeForce 400 series, AMD 7xxxx, Intel HD6xxxx, Support for OpenGL 4.1+ |
| Memory | 3 GB+ (minimum), 8GB+ (recommended). |
| Monitor | Resolution of 1280×1024 (minimum), 1600×1200 (recommended). |
| Mouse | 2 button with scroll wheel, 3 button mouse, or trackpad equivalency. |
| SUPPORTED FILE FORMATS | |
| Data input and export | A wide variety of gridded, point, and image formats are supported, as well as backscatter and midwater import formats. |
| Gridded data import formats | ArcView Binary Grid, ER Mapper Grid, Fugro GRI, Caris Base Surface, Predicted Topography, Gridded ASCII, Etopo2 Database, GMT GRD, ISIS Grid, Raw Binary Grid, BAG/Open Navigation Surface, NetCDF, Multi-Column ASCII, Etopo5 Database, Grass DTM, NOAA Gravity, Surfer ASCII Binary Grid, DTED Grid, Final Survey Grid (NAVO), GUTM Grid, OMG R4/MOS, USGS DEM, GeoTIFF Grid / Floating Point GeoTIFF, QINSy GRD, PFM 6.3.0 |
| Gridded data export formats | ASCII Grid, ASCII Arcview Grid, GeoTIFF Grid / Floating Point GeoTIFF, Generic Binary Grid, GMT Grid, QINSy GRD, PFM 6.3.0 |
| FM Geocoder import formats | GSF, ALL, XTF (limited support), GSF/S7K or 7K pair, GSF/XTF pair, GSF/R2SC or R2S pair, QPD/DB pair (for select sonars), HDCS/ALL pair, HDCS/S7K or 7K pair, HDCS/R2SC or R2S pair, HDCS/GSF pair, HDCS/XTF pair |
| FM Midwater import format | ALL, WCD, RAW, EK5, XTF, 83B, S7K, SEGY, DBM, QPD+DB (for select sonars) |
| Image formats | BMP, GIF, ERDAS Imagine, JPEG 2000, UniSIPS, JPEG, PNG, TIFF, EPS |
| Point data imports | HDCS (Caris) – Windows Only, GSF, NEPTUNE (Kongsberg), raw.all (Kongsberg), PDS2000 (Reson), ASCII XYZ, HTF (RAN), SHOALS OUT (Optech), SHOALS HOF (Optech), SHOALS TOF (Optech), SHOALS ABH (Optech), C&C Binary XYZ (C&C), C&C Trace (C&C), OMG MERGE (UNB), SURF (Atlas), FAU / FAU2, LAS 1.2, PIVOT (SHOM), B93 (NGA), HS2 (Hypack) – Windows Only, HS2x (Hypack) – Windows Only, BDI (SMA), Lidar Comprehensive, L3 XSE, QINSy QPD1, QINSy QPD2 |
