GeoMax Zenith 35 Pro

Zenith35 Pro Series
The Zenith35 Pro is equipped with the latest NovAtel measurement engine, with 555 channels multi constellation and frequency support providing unmatched functionality. The unique Zenith35 Pro Tilt&Go functionality allows you to access the inaccessible, ensured by a precise electronic bubble. Its Wi-Fi connection offers the possibility to configure the
Zenith35 Pro from every device. With IP68, the Zenith35 Pro Series is a compact and rugged tool that is water and dust proof.

FULL FREEDOM

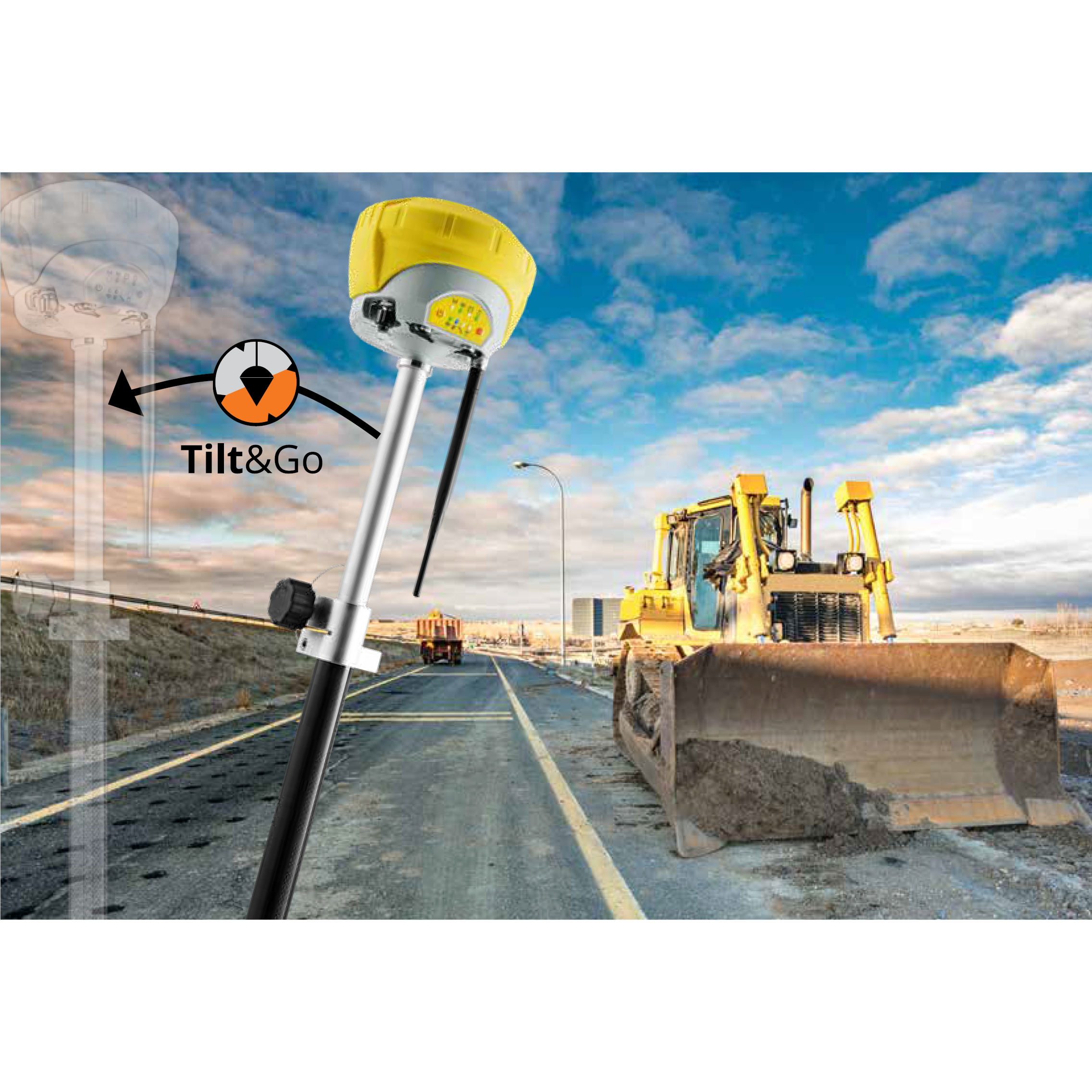

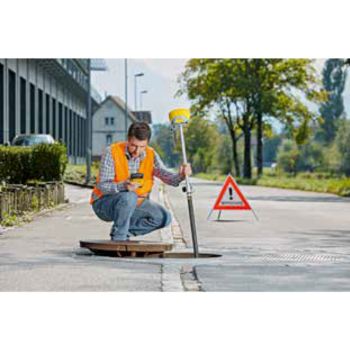

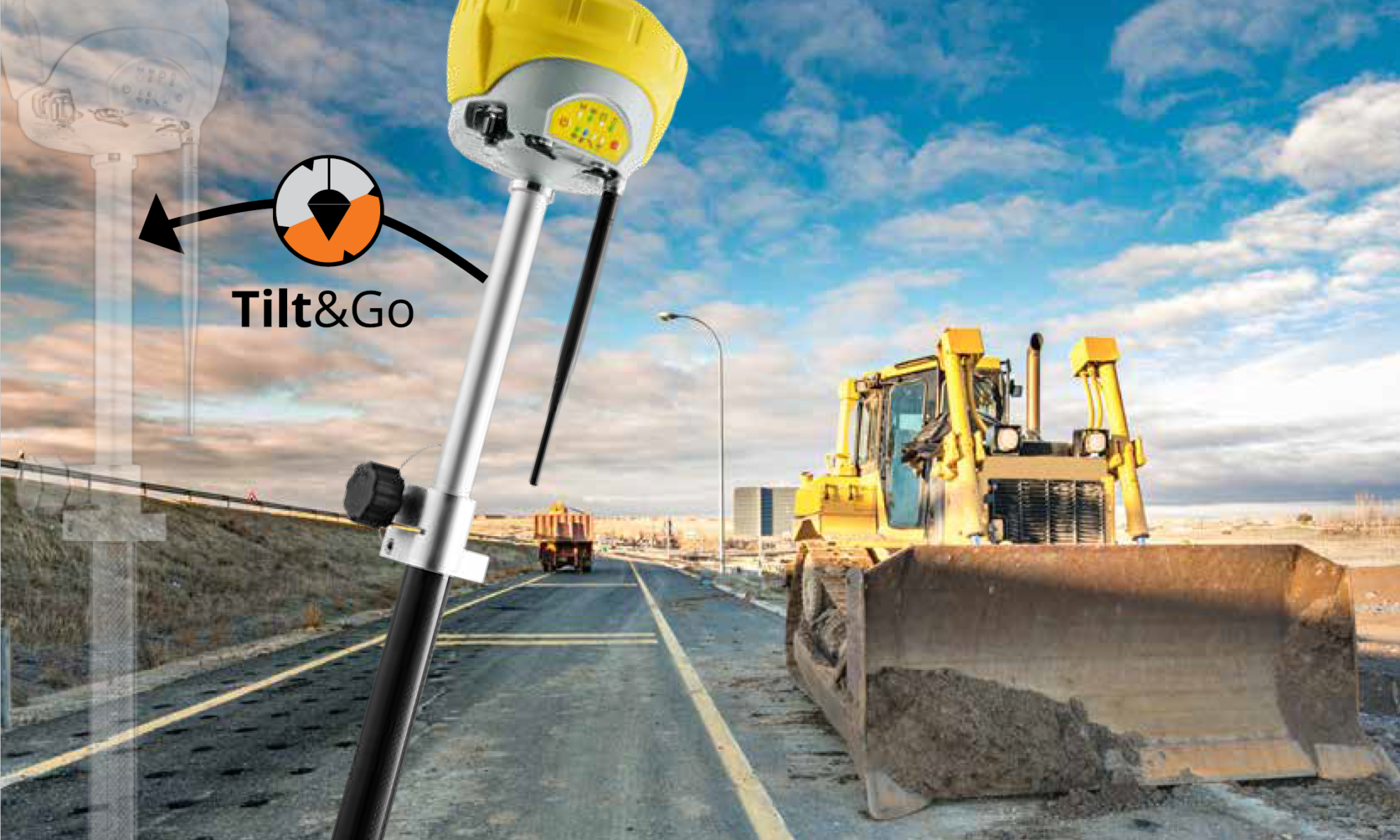

A corner of a building or even a gully under a parked car? The unique Zenith35 Pro Tilt&Go functionality allows you to measure points where a vertical placement of the pole is not possible such as house corners.
No longer worry about keeping your pole strictly vertical, just Tilt & Go! Seamlessly integrated into the field software, the Zenith35 Pro TAG offers two modes perfectly adapting to the measurement situation.
• TAG Single – when the highest efficiency is needed. Measure points with pole tilted up to 15° with only one press of a button.
Perfectly suited for all your standard tasks, such as topographical surveys and stakeouts.
• TAG Dual – when working under difficult situations. Independent from discrepancies caused by metal objects (or those generating magnetic fields). With pole tilt up to 30°.
When you do have to be sure your pole is vertical, the Zenith35 Pro TAG alerts you when you are outside of the defined centering accuracy, documenting the quality of your measurement.

Categories: ,

Description

FULL CONNECTIVITY
Bluetooth and WiFi connection
Access from any device connected to the internet, independent of your location
USB port for data transfer
Serial port for data output
Powerful UHF for base-rover setups
3.75 G GSM for NTRIP connections
Connect up to 10 rovers simultaneously via
GSM with Zenith35 Pro DynDNS technology

FULL SKY
555 channels multi constellation and multi frequency, ready for all todays and tomorrows GNSS systems, including Galileo and BeiDou.
NovAtel onboard – Cutting-edge technology from leading provider of high precision GNSS.
Zenith35 Pro ExtraSafe mode – Working under heavy canopy or when most reliable results are required, this feature adapts to different working conditions.

Receiver specifications
AdVance® technology High fix availability + reliability
Channels 555, multi-frequency
GPS tracking L1, L2, L2C, L5
GLONASS tracking L1, L2, L3*
BeiDou tracking B1, B2, B3**
Galileo tracking E1, E5a, E5b, AltBOC, E6**
Positioning rate 5Hz, 20Hz (opt)
SBAS EGNOS, WAAS, MSAS, GAGAN, QZSS***
Interfaces
Keyboard On/off and function key
LED status indicators Position, battery, Bluetooth®, Wi-Fi®,
RTK receive, RTK transmit, data storage
LED mode indicators Rover, base, static
Data recording Dual; microSD card and
8 GB internal memory
GSM/TCP/IP Removable SIM card
Quality mode
RTK modes Selectable; ExtraSafe, Standard
Tilt&Go modes Selectable; Single/Dual
Communication
GSM/GPRS module Quad-Band GSM & Penta-Band
UMTS 800 / 850 / 900 / 1900 / 2100 MHz
UHF radio module 500mW, 1000 mW transceiver,
403 – 473 MHz
Bluetooth® Device class II
TNC connector UHF antenna, UMTS/GSM antenna
Communication port USB, serial & power
Integrated Wi-Fi®
module
Port for external power
and radio
Quick removable SIM
and microSD card
Integrated 3.75 G GSM and
UHF modules
8 GB internal memory
Dual mode: up to 30 ° tilt
Single mode: up to 15° tilt
30°
555 channels
Receiver accuracy****
Static horizontal 3 mm ± 0.5 ppm (rms)
Static vertical 5 mm ± 0.5 ppm (rms)
Kinematic horizontal 8 mm ± 1 ppm (rms)
Kinematic vertical 15 mm ± 1 ppm (rms)
Static long horizontal 3 mm + 0.1 ppm (rms)
Static long vertical 3.5 mm + 0.4 ppm (rms)
Physical specifications
Dimensions Height 131 mm, ø 161 mm
Weight 1.17 kg without battery
Operating temp. – 40°C to 65°C
Protection class IP68 dust and waterproof
Humidity 100%, condensing
Vibration ASAE EP455 Section 5.15.1 Random,
MIL-STD-810G, method 514.6E-I
Shock Withstands 2 m drop onto hard surface
Power supply
Internal battery Removable, Li-Ion 3.4 Ah / 11.1 V
Operating time 8 h in static / 6 h in rover mode
External power 9 V to 18 V, LEMO® plug

*Glonass L3 will be provided through future firmware upgrade.
** Believe to comply. Subject to ICD description availability.
*** Support of QZSS is incorporated and will be provided through future firmware upgrade when QZSS will be operational.
**** Measurement accuracy and reliability are dependent on various factors including satellite geometry, obstructions, observation time, ionospheric conditions, multipath, etc.
